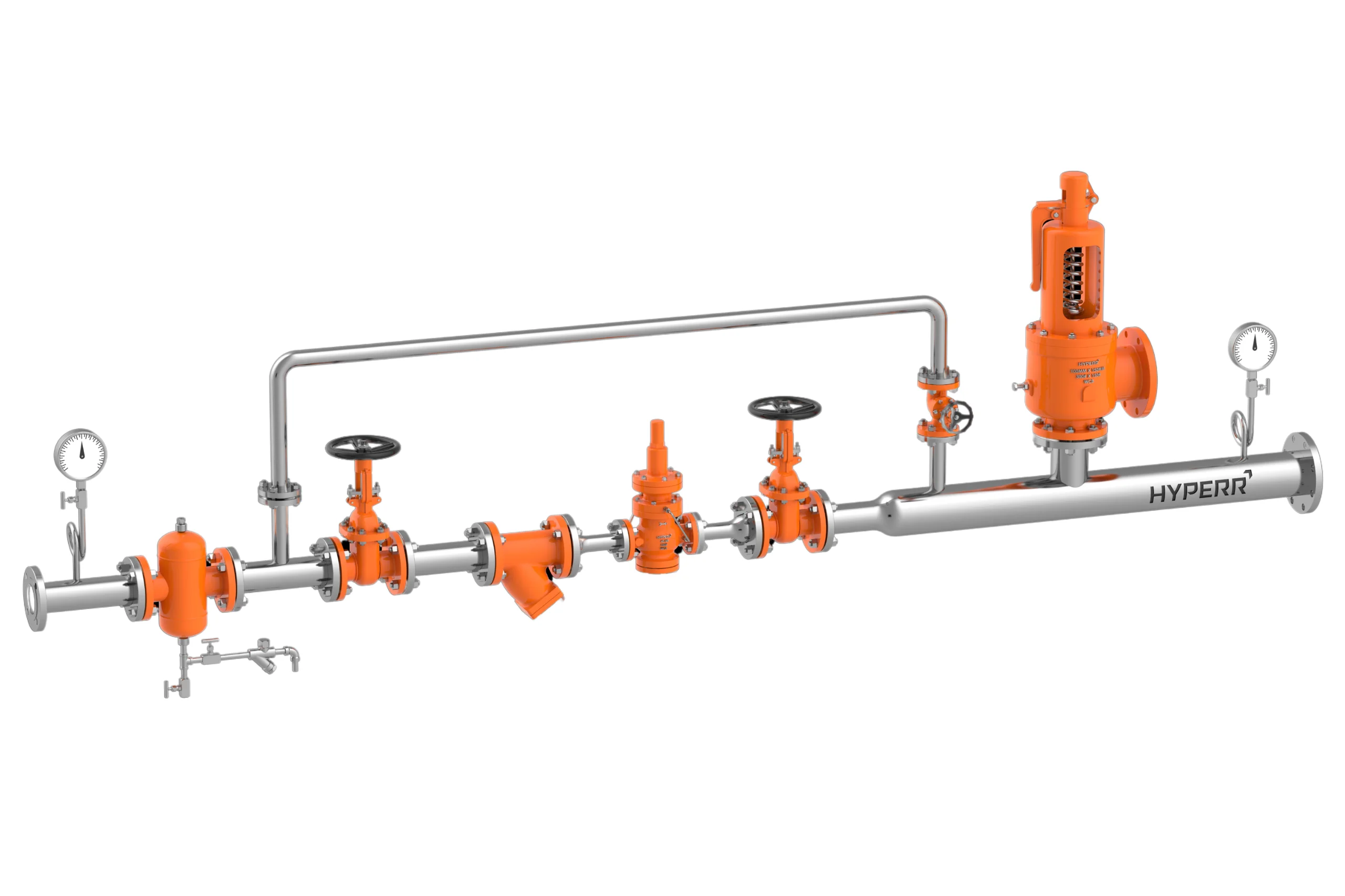

Pressure Reducing Station
High-Performance Pressure Reducing Station Manufacturer
Hyperr Valves Pvt Ltd is a leading manufacturers, supplier and exporter of Pressure Reducing Station. Our Pressure Reducing Station (PRS) delivers precise pressure regulation for gas and steam systems. Designed to manage fluctuating inlet conditions, it ensures stable downstream pressure across both high and low-pressure ranges. The station integrates high-performance regulators with critical safety devices—including Slam Shut-Off Valves, Safety Relief Valves, and Flame Arrestors—providing multi-layered protection against overpressure and surges.
Key Features:
- Integrated Safety: Complete skid solution featuring slam shut-off, relief valves, and flame arrestors for maximum facility protection.
- Precision Control: Maintains consistent downstream pressure regardless of inlet fluctuations or demand changes.
- Simulation-Optimized: Designed using SolidWorks to optimize flow dynamics and structural integrity.
- Standard Compliance: Built to ISO, API, and NFPA standards for operation in hazardous environments.
- Robust Build: Constructed with high-grade materials to withstand extreme temperatures and corrosive media.
Applications:
- Gas Distribution Networks
- Steam Generation
- Petrochemical Plants
- Power Plants
- Oil & Gas Facilities
| Product Specifications | |
|---|---|
|
Size |
1/2” to 10” |
|
Pressure Rating |
Up to 2500# |
|
End Connection |
Flange End, Screw End |
|
Media |
Liquid, Gas, Steam |
|
Approval |
IBR |
|
Material |
Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel |
Pressure Reducing Station (Steam Application)
- Model No - HV-PRS-01
- Size - 1/2" to 10"
- Media - Steam
- Rating - Up to 300#
- End Connection - Flange End
- Inlet Pressure - Up to 17 bar-g
- Outlet Pressure - Up to 10 bar-g
Pressure Reducing Station (Gas Application)
- Model No - HV-PRS-02
- Size - 1/2" to 6"
- Media - Gas (Non Flammable)
- Rating - Up to 2500#
- End Connection - Flange End, Screw End
- Inlet Pressure - 200 bar-g
- Outlet Pressure - Up to 20 bar-g
Pressure Reducing Station with Slam Shut off Valve
- Model No - HV-PRS-03
- Size - 1/2" to 6"
- Media - Gas (Non Flammable)
- Rating - Up to 2500#
- End Connection - Flange End, Screw End
- Inlet Pressure - 200 bar-g
- Outlet Pressure - Up to 20 bar-g
Pressure Reducing Station with Slam Shut off & Flame Arrestor
- Model No - HV-PRS-04
- Size - 1/2" to 6"
- Media - Gas (Flammable)
- Rating - Up to 2500#
- End Connection - Flange End, Screw End
- Inlet Pressure - 200 bar-g
- Outlet Pressure - Up to 20 bar-g
Application Industries
- Sugar Mill
- Marine & Mining
- Chemical & Process Industry
- Fertilizer Plant
- Distillery Plant
- Pulp & Paper Mill
- Oil, Gas, Petrochemical Plant
- Textile and Process Industries
- Thermal and Nuclear Power Plant
- Pharma Industries
- Food & Beverages
- CNG Gas Stations
- Bio Gas Plant
