Flame Arrestor (Deflagration & Detonation)
High-Performance Deflagration & Detonation Flame Arrestor Manufacturer

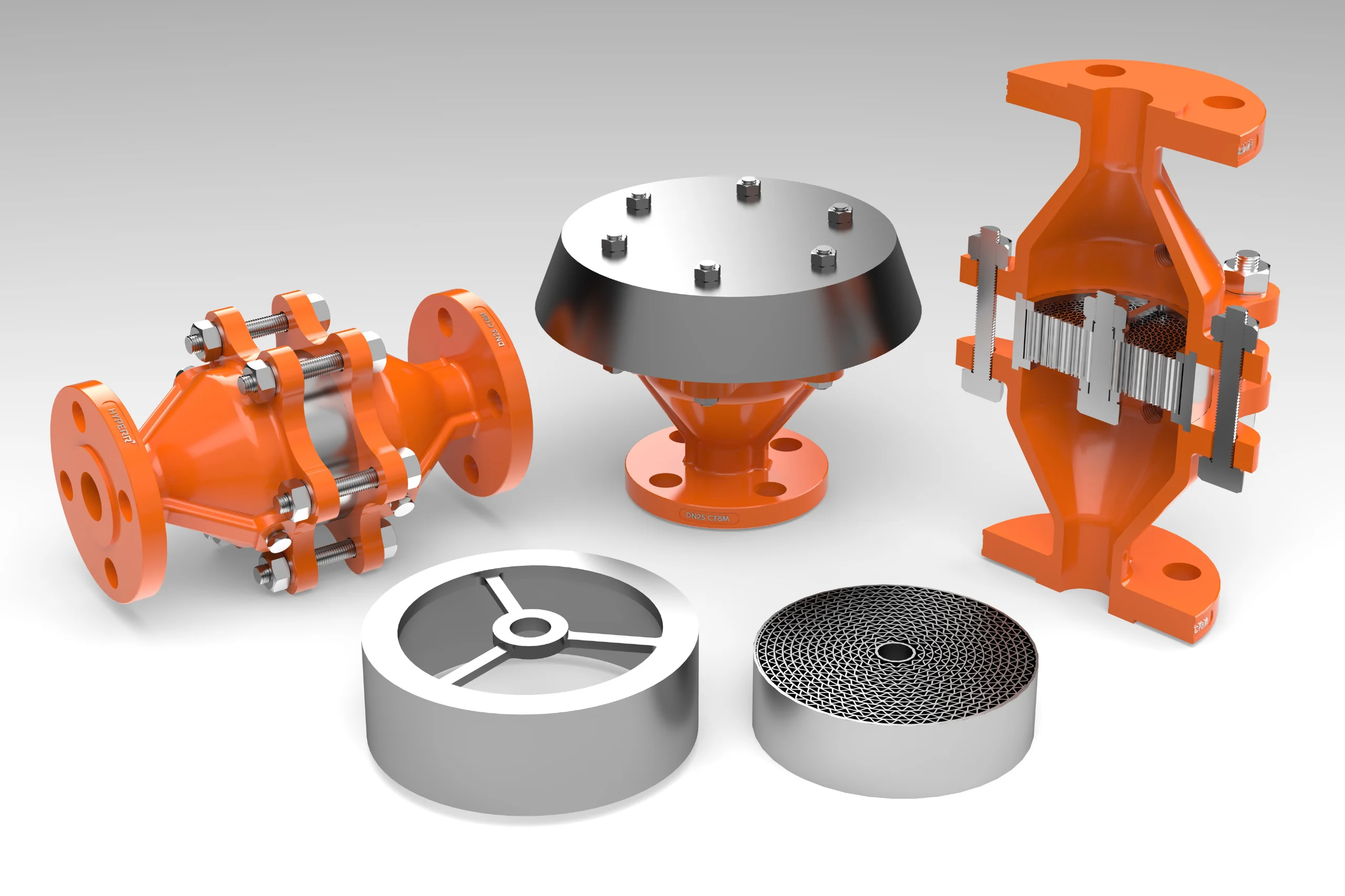

Hyperr Valves Pvt Ltd is a leading manufacturers, supplier and exporter of Flame Arrestor (Deflagration & Detonation). Our Flame Arrestor is engineered to provide robust protection against flame propagation in hazardous pipelines and storage tanks. Operating on the principle of thermal quenching, it utilizes a precision-engineered multi-cell matrix (element) to intercept and cool an advancing flame front, effectively extinguishing it before it can reach critical equipment.
Designed in strict adherence to ISO 16852 and API 2000, our arrestors are modelled using SolidWorks to optimize flow capacity while ensuring maximum safety. Whether for end-of-line or in-line applications, they provide essential protection against flashbacks in explosive atmospheres.
Key Features:
- Advanced Quenching: Multi-cell matrix absorbs thermal energy to stop flames instantly without significantly restricting flow.
- Certified Safety: Designed and tested in accordance with ISO 16852, API, and NFPA standards.
- Bi-Directional Protection: Stops flame transmission from either direction in the pipeline.
- Low Pressure Drop: Optimized element design ensures minimal resistance to flow during normal operation.
- Easy Maintenance: Element bank is easily accessible for cleaning and inspection to prevent clogging.
Applications:
- Fuel Storage Tanks
- Vapor Recovery Lines
- Flare Stacks
- Chemical Reactor Vents
| Product Specifications | |
|---|---|
|
Size |
1” to 16” |
|
Design |
Inline or End of Line |
|
Material Body |
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Hastelloy, Alloy - 20, Monel, Inconel |
|
Type |
Detonation or Deflegration Flame Arrestor |
|
Pressure Rating |
150# |
|
End Connection |
Flange End, Screw End |
|
Element Material |
SS 304, SS 316, Hastelloy |
|
Explosion Gas Group |
IIA, IIB, IIC |
Models Of Flame Arrestor
Flame Arrestor
- Model No - HV-FA-01
- Design - Inline
- Size - 1" to 16"
Flame Arrestor
- Model No - HV-FA-02
- Design - End of Line
- Size - 1" to 16"
APPLICATION INDUSTRIES
- Sugar Mill
- Marine & Mining
- Chemical & Process Industry
- Fertilizer Plant
- Distillery Plant
- Pulp & Paper Mill
- Oil, Gas, Petrochemical Plant
- Textile and Process Industries
- Thermal and Nuclear Power Plant
- Pharma Industries
- Food & Beverages
- CNG Gas Stations
- Bio Gas Plant
