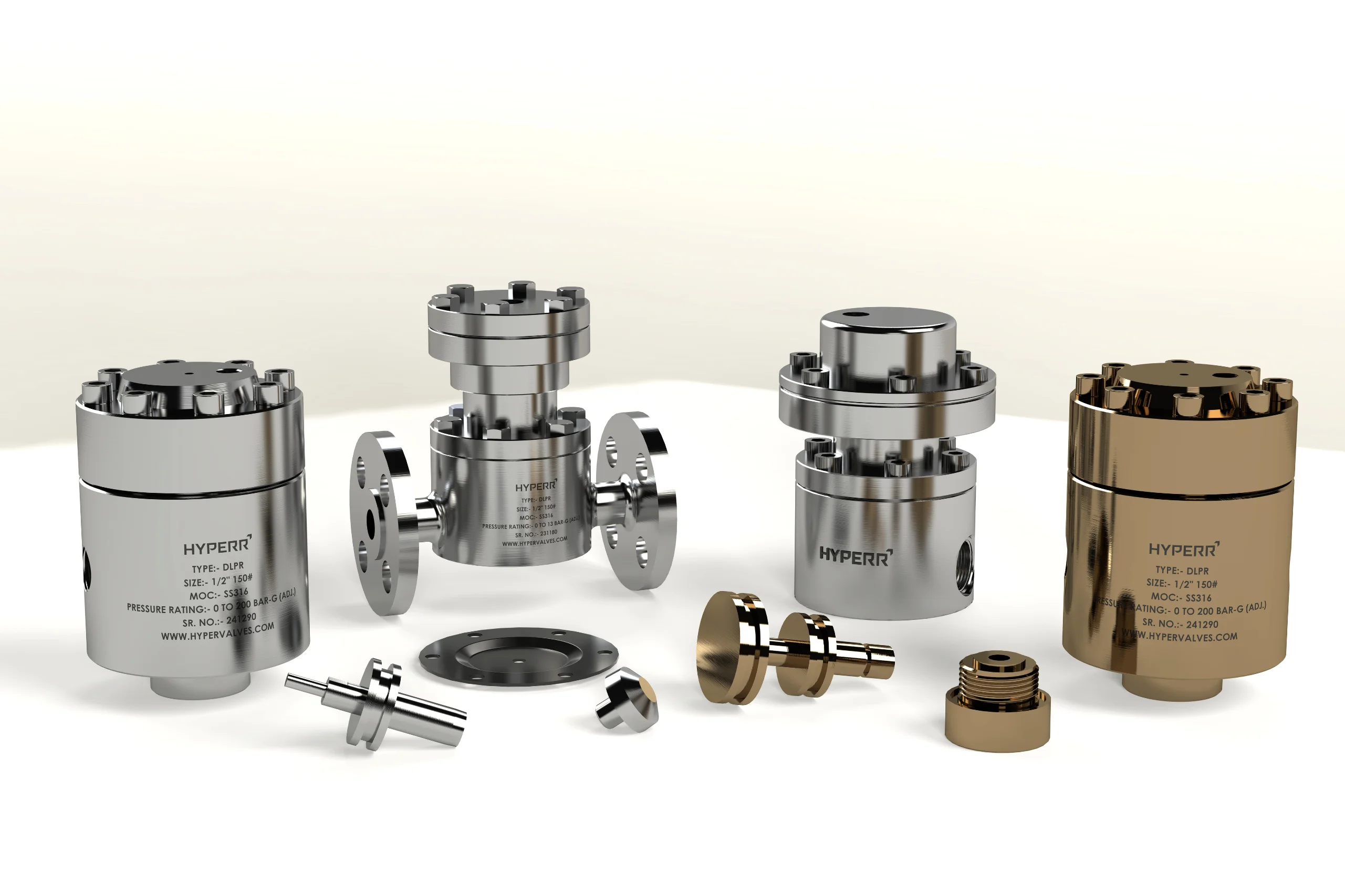

Dome Loaded Pressure Reducing Regulator
High-Precision Dome Loaded Pressure Reducing Regulator Manufacturer
Hyperr Valves Pvt Ltd is a leading manufacturers, supplier and exporter of Dome Loaded Pressure Reducing Regulator. Engineered for critical stability, our Dome Loaded Regulator outperforms traditional spring-loaded valves by using gas pressure to control the setpoint. This design eliminates spring “droop” and hysteresis, delivering unwavering downstream pressure even during massive flow spikes or inlet pressure fluctuations. Optimized via SolidWorks and CFD analysis, it offers high-flow capacity with precision accuracy.
Key Features:
- Precision Control: Gas-loaded dome ensures a flat pressure curve with near-zero droop.
- Balanced Design: Outlet pressure remains stable regardless of inlet pressure changes.
- Automation Ready: Easily integrates with electronic pilot regulators for remote setpoint tracking.
- Extreme Durability: Available in SS316L and exotic alloys for pressures up to 400 bar (6000 psi).
- High Flow: Internal geometry maximized for superior Cv and minimal pressure loss.
Applications:
- Laser Assist Gas
- High-Pressure Manifolds
- Hydrogen Refuelling
- Chemical Injection Skids
| Product Specifications | |
|---|---|
|
Type |
Piston Sensing, Diaphragm Sensing |
|
Size |
1/4” to 2” |
|
Pressure Rating |
Up to 2500# |
|
Seat Type |
Soft Seated |
|
End Connection |
Flange End, Screwed End |
|
Media |
Liquid, Gas |
|
Dome To Outlet Pressure Ratio |
1:1 (Approx.) |
|
Material |
Stainless Steel, Duplex Steel, Hastelloy, Alloy-20, Monel, Inconel, Cupronickel |
Dome Loaded Pressure Regulator
- Model No - HV-DLPR-01
- Design - Low Pressure, Diaphragm Sensing
- Size - 1/4" to 2"
- Rating - Up to 300#
- Inlet Pressure - Up to 20 bar-g
- Outlet Pressure - Up to 10 bar-g

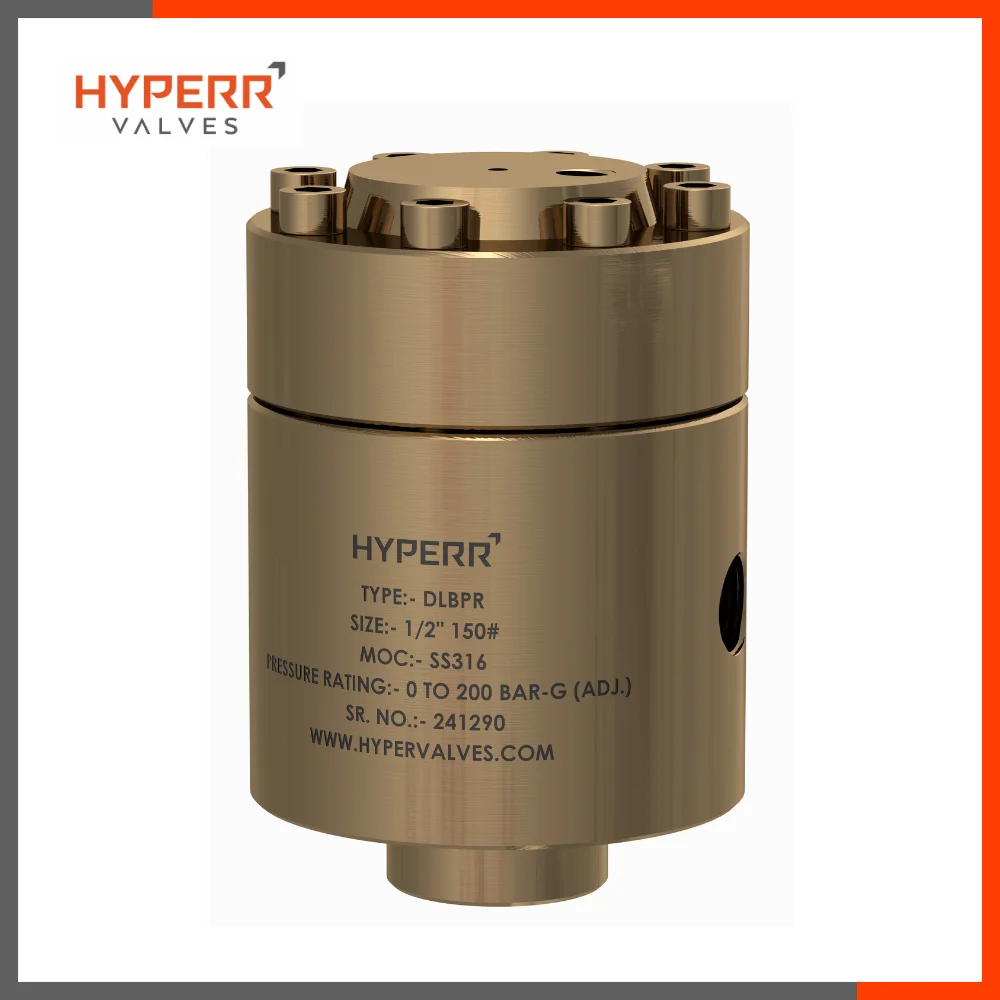

Dome Loaded Pressure Regulator
- Model No - HV-DLPR-02
- Design - High Pressure, Piston Sensing
- Size - 1/4" to 2"
- Rating - Up to 6000 PSIG
- Inlet Pressure - Up to 250 bar-g
- Outlet Pressure - Up to 200 bar-g
Application Industries
- Sugar Mill
- Marine & Mining
- Chemical & Process Industry
- Fertilizer Plant
- Distillery Plant
- Pulp & Paper Mill
- Oil, Gas, Petrochemical Plant
- Textile and Process Industries
- Thermal and Nuclear Power Plant
- Pharma Industries
- Food & Beverages
- CNG Gas Stations
- Bio Gas Plant
