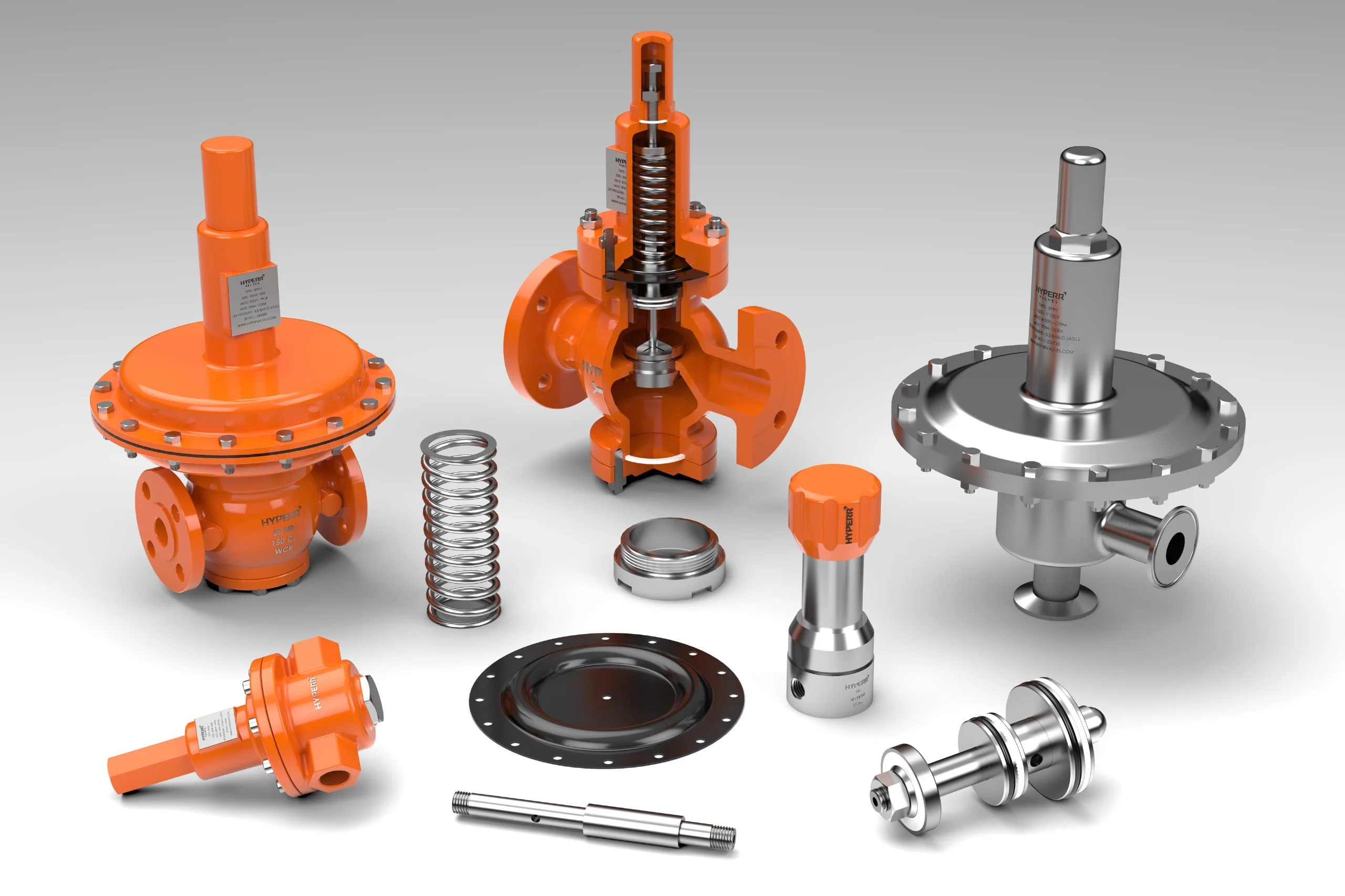

Back Pressure Regulating Valve
High-Performance Back Pressure Regulating Valve Manufacturer
Hyperr Valves Pvt Ltd is a leading manufacturers, supplier and exporter of Back Pressure Regulating Valve. Our Back Pressure Regulating Valve is engineered to maintain a constant upstream pressure (inlet pressure) by relieving excess flow downstream. Functioning essentially as a “pressure sustaining” device, it modulates open when the inlet pressure exceeds the setpoint and closes as pressure drops, ensuring critical upstream processes or vessels maintain the required pressure for operation.
Built for continuous regulation rather than just emergency relief, this valve utilizes a precision spring-loaded or pilot-operated mechanism for smooth, stable control. Designed using SolidWorks and compliant with API and ANSI standards, it offers robust performance in liquid, gas, and steam applications.
Key Features:
- Upstream Pressure Control: Automatically maintains inlet pressure at the desired setpoint, regardless of downstream fluctuations.
- Continuous Operation: Designed for dynamic, modulating control (unlike relief valves which are for static/emergency use).
- Precise Regulation: Spring or Pilot-actuated mechanism minimizes hysteresis for accurate setpoint adherence.
- Tight Shut-Off: Available with soft-seating (Class VI) to prevent leak-through when system pressure is below the setpoint.
- Durable Construction: Heavy-duty body available in Carbon Steel, Stainless Steel, and Alloys for high-pressure and corrosive services.
Applications:
- Pump Bypass / Recirculation Lines
- Maintaining Vessel Pressure
- Separator Control
- Condensate Systems
| Technical Specifications | |
|---|---|
|
Size |
1/4” to 8” |
|
Design |
Direct Acting Spring Loaded; Pilot Operated |
|
Pressure Rating |
150# to 2500# |
|
End Connection |
Flange End, Screwed End, Tri-Clover End |
|
Media |
Steam, Vapor / Gas, Liquid |
|
Seat Type |
Metal Seated, Soft Seated |
|
Sensing Type |
Piston Sensing, Diaphragm Sensing |
|
Material |
Carbon Steel, Alloy Steel, Stainless steel, Duplex Steel, Hastelloy, Alloy-20, Monel, Inconel, PP, PTFE/RPTFE, PVC, UPVC, CPVC, PVDF |
Models of Back Pressure Regulating Valve
Direct Acting Back Pressure Valve
- Model No - HV-BPRV-01
- Design - Low Pressure Diaphragm Sensing
- Size - 1/4" to 1"
- Rating - 150#
- Media - Gas, Vapour, Liquid
- End Connection - Screw End, Flange End
- Set Pressure - Up to 7 bar-g
Direct Acting Back Pressure Valve
- Model No - HV-BPRV-02
- Design - High Pressure Piston Sensing, Balance Plug
- Size - 1/2" to 6"
- Rating - Up to 600#
- Media - Gas, Vapour, Liquid
- End Connection - Screwed End (Up to 2" Size), Flange End
- Set Pressure - Up to 40 bar-g
Direct Acting Back Pressure Valve
- Model No - HV-BPRV-03
- Design - Low Pressure Diaphragm Sensing, Balance Plug, Spring loaded.
- Size - 1/2" to 4"
- Rating - 150#
- Media - Gas, Liquid
- End Connection - Screwed End (Up to 2" Size), Flange End
- Set Pressure - Up to 4 bar-g
Direct Acting Back Pressure Valve
- Model No - HV-BPRV-04
- Design - Low Pressure Diaphragm Sensing, Tank Blanketing
- Size - 1/2" to 6"
- Rating - 150#
- Media - Gas
- End Connection - Screwed End (Up to 2" Size), Flange End
- Set Pressure - Up to 500 mbar-g
Pilot Operated Back Pressure Valve
- Model No - HV-BPRV-05
- Design - High Pressure Piston Sensing
- Size - 1/2" to 6"
- Rating - Up to 600#
- Media - Gas, Vapour, Liquid
- End Connection - Screwed End (Up to 2" Size), Flange End
- Set Pressure - Up to 60 bar-g
Sanitary Back Pressure Valve
- Model No - HV-BPRV-06
- Design - Diaphragm Sensing
- Size - 1/2" to 3"
- Rating - 150#
- Media - Pure Gas, Liquid, Clean Steam
- End Connection - Tri Clover End
- Set Pressure - Up to 5 bar-g
- Special Feature - Internal Surface Finish Ra <0.8 um, Internally Electro Polished

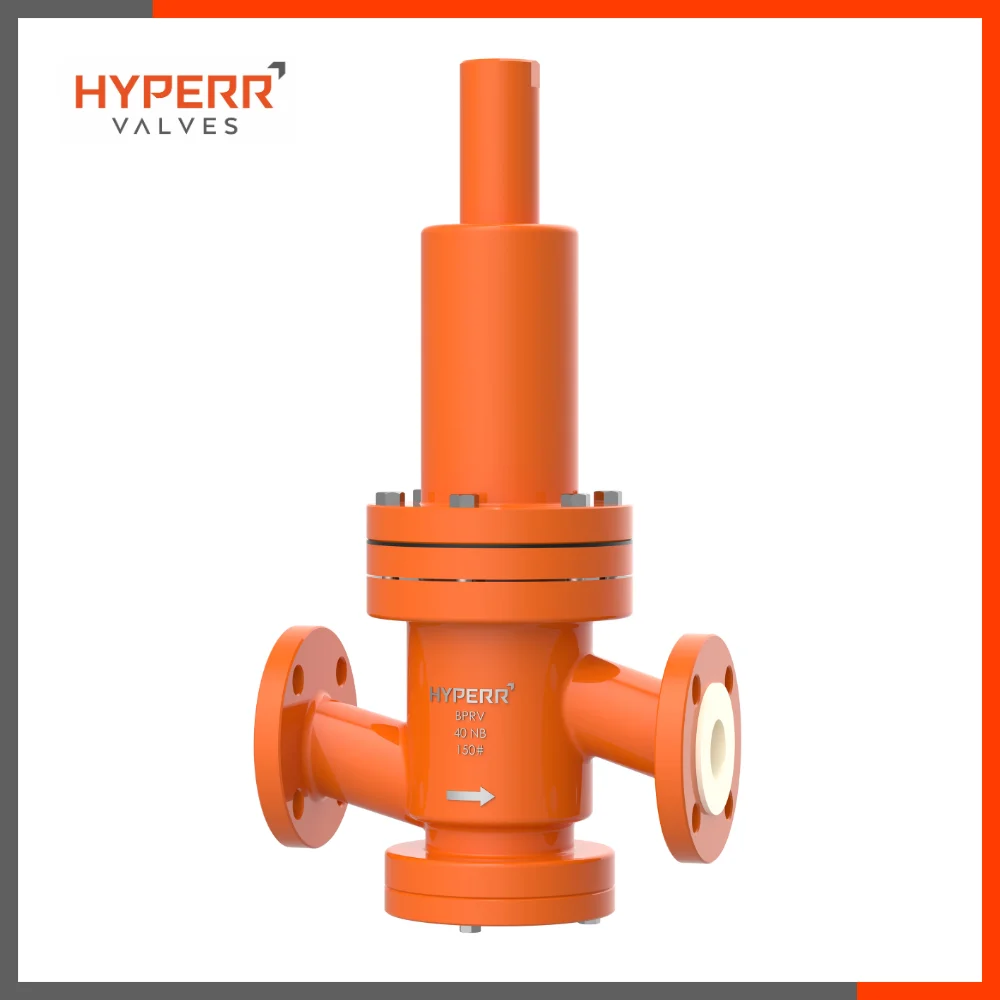

Back Pressure Valve - Lined
- Model No - HV-BPRV-07
- Design - PFA/FEP Lined, Diaphragm Sensing
- Size - 1" to 4"
- Rating - 150#
- Media - Corrosive Gas, Corrosive Liquid
- End Connection - Flange End
- Set Pressure - Up to 5 Bag-g
Back Pressure Regulator
- Model No - HV-BPRV-08
- Design - High Pressure Piston Sensing
- Size - 1/4" to 2"
- Rating - Up to 6000 PSI-G
- Media - Gas, Vapour, Liquid
- End Connection - Screwed End
- Set Pressure - Up to 250 bar-g

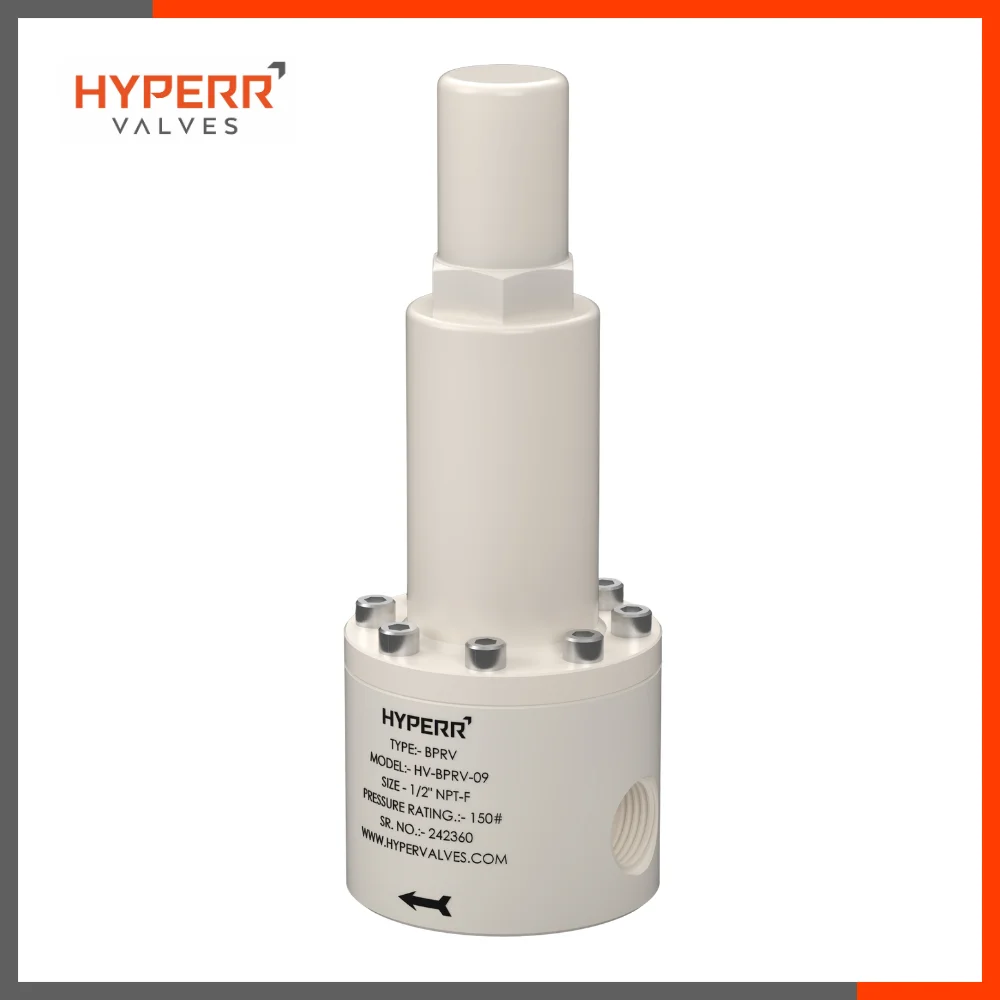

Back Pressure Regulator
- Model No - HV-BPRV-09
- Design - Low Pressure, Diaphragm Sensing
- Size - 1/4" to 2"
- Rating - 150#
- Media - Gas, Vapour, Liquid
- End Connection - Screwed End, Flange End
- Set Pressure - Up to 10 Bag-g
Back Pressure Regulator
- Model No - HV-BPRV-10
- Design - Low Pressure, Diaphragm Sensing
- Size - 1/4" to 2"
- Rating - 150#
- Media - Gas, Vapour, Liquid
- End Connection - Screwed End, Flange End
- Set Pressure - Up to 10 bar-g
APPLICATION INDUSTRIES
- Sugar Mill
- Marine & Mining
- Chemical & Process Industry
- Fertilizer Plant
- Distillery Plant
- Pulp & Paper Mill
- Oil, Gas, Petrochemical Plant
- Textile and Process Industries
- Thermal and Nuclear Power Plant
- Pharma Industries
- Food & Beverages
- CNG Gas Stations
- Bio Gas Plant
